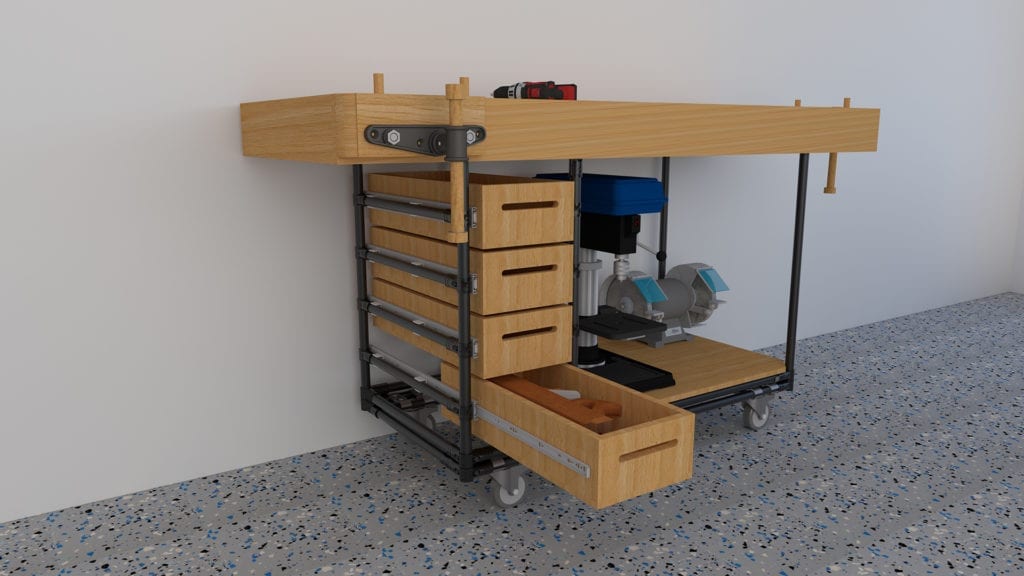

A good heavy-duty workbench will help you work smarter and faster. The perks of designing your own:
- Designing the dimensions of the workbench to fit the space available, and making it the right height for you
- Adding different functions to your workbench (storage, shadow board, wheels…)
- Being able to choose the type of surface according to your preferences
1. The parts you’ll need
Making sure you think of how you’ll be using your workbench is the first step when designing it. Will you need to move it around often? Do you want to fix some tools to the workbench? Will you need extra built-in storage space? How big of a surface do you actually need to work on?
Here are the parts you’ll need to build a 77 1/2″ X 42 1/2″ workbench. Please note that if you choose to change the dimensions of the project, you’ll need to adjust the quantity of the parts you buy!
Qty. | Part | SKU | Link |
---|---|---|---|
11 | 1-1/16" x 92" Jet black steel pipe | PT-92-BK | Buy now |
10 | Upper clamp joint bk | H-15 | Buy now |
1 | 5/8" Screw to reinforce zinc-box of 100 | FA-A85/8 | Buy now |
16 | 35mm bolt zinc | M8-35B | Buy now |
8 | Lower bracket for casters | WF-LOW | Buy now |
8 | Parallel joint bk | H-13 | Buy now |
4 | 4" swivel caster w/brake | W-4PSB | Buy now |
4 | 3 way cross joint bk | H-4 | Buy now |
6 | Pipe clamp single mount metal | AO-EMT1 | Buy now |
82 | Joint set nut black | M6-N | Buy now |
1 | 1/2" Screw for accessories zinc-box of 100 | FA-S81/2 | Buy now |
56 | T-connector single joint bk | H-1 | Buy now |
18 | Inner corner joint bk | H-2 | Buy now |
18 | Outer corner joint bk | H-3K | Buy now |
10 | HJ-15 joint set bolt black | M6-12B | Buy now |
10 | Lower clamp joint bk | H-16 | Buy now |
10 | Plastic Pipe End Cap | AP-ICAP | Buy now |
16 | Lock nut | M-8N | Buy now |
72 | Standard joint set bolt black | M6-25B | Buy now |
The beauty of tinktube is that you can personalize your projects according to your preferences. However, some parts are not sold on our online store. To complete your heavy-duty workbench, you’ll need to buy this at your favorite hardware store or online:
Qty. | Product | Link |
---|---|---|
8 | 24″ FULL EXTENSION DRAWERS SLIDES – 100lb | Buy on amazon.com |
2. The cut list
Once you get all the parts, you’ll need to cut the tubes before building the project. Here’s the cut list for a 77 1/2″ X 42 1/2″ workbench:
Qty. | Length (inch) | Length (centimeter) |
---|---|---|
8 | 43 7/8″ | 111.44 cm |
4 | 31 15/16″ | 81.12 cm |
2 | 25 3/16″ | 63.98 cm |
4 | 20 9/16″ | 52.23 cm |
20 | 19 15/16″ | 50.64 cm |
If you don’t already have a pipe cutter, get one from our shop here.
3. The build (the fun part)
Now that all the pipes are cut and you’ve gathered all the connectors, you’re ready to start building your heavy-duty workbench!
The tinktube joint sets are assembled with bolts that require one of the following tools -you might already have this at home-:
Tool name | Number | Link |
---|---|---|
Hex drill bit set (x5) | T-BIT | Buy now |
T handle wrench | T-HANDLE | Buy now |
4. You are now ready to work
Now that you have completed building your workbench, you’re all set to start working on your favorite project!
We hope you enjoyed this free plan! You might also be interested in Alex’s ski waxing / heavy duty workbench.
